DS900/300C

SPECIFICATIONS

NOTE: 'RED text' denotes other standard options.

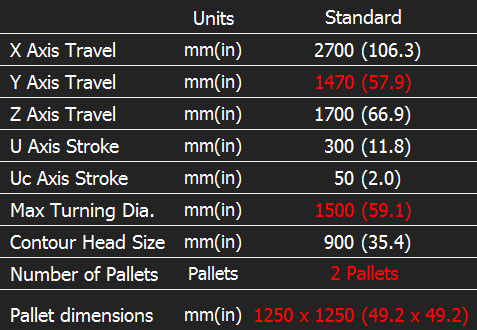

SPECIFICATIONS

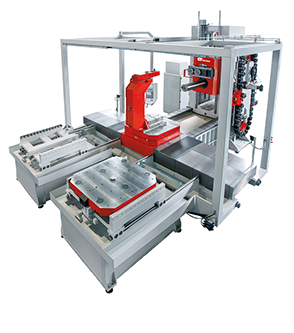

The 900mm U-Axis contour head with 2 tool pocket positions on a 300mm stroke slide, make this machine the perfect size machine to cover the medium to larger sizes with turning diameters up to 1500mm (59”).



The contour head has all the functions of a CNC lathe, including constant surface speed, single point threading, and complete contour capabilities.



All tools are can be changed from the tool magazine directly into the quill spindle or either of the 2 tool pockets on the contour head.



The separate, 250mm diameter milling spindle, along with the heavy milling and drilling ability, has a built in u-axis drive to control tool changeable, 250mm contour heads for the smaller diameters that are very often found on the larger parts. This feature gives a lot of capabilities for smaller machining on a large capacity machine.



To view more about the DS900/200C machining center including pictures and videos, VIEW THE FULL SITE here or CONTACT US for more info.
